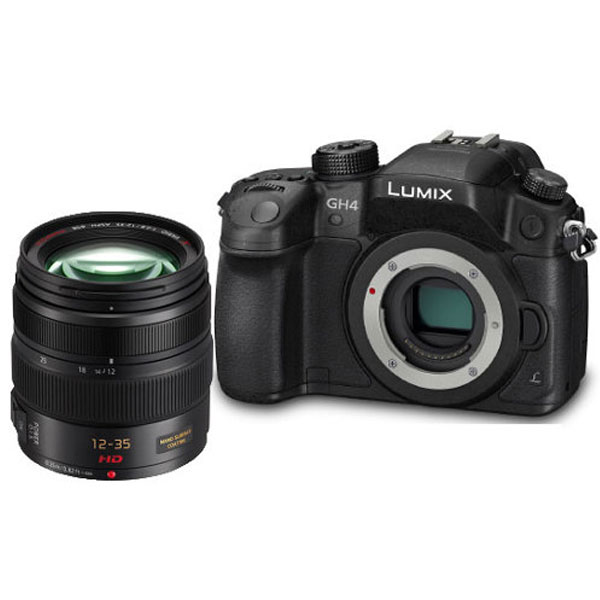

Panasonic DMC-GH4 12-35mm F2.8 ASPH X Vario

Камера Panasonic DMC-GH4

Тип камеры

Цифровая однообъективная беззеркальная камера

Носитель информации

SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I standard SDHC / SDXC Memory Cards)

Размер сенсора

17.3 x 13.0 mm (кроп-фактор 2)

байонет

Micro Four Thirds (micro 4/3)

Матрица

Тип: Live MOS Sensor

Кол-во пикселей: 17.20 Megapixels

Эффективных пикселей: 16.05 Megapixels

Цветовой фильтр: предварительный цветовой фильтр

Система очистки: ультразвуковой волновой

Форматы записи

Фото: JPEG (DCF, Exif 2.3), RAW MPO

Видео: AVCHD Ver 2.0  (AVCHD Progressive), MPEG4-AVC (H.264). (MOV, MP4)

Формат кадра

4:3, 3:2, 16:9, 1:1

Качество изображения

RAW, RAW+Fine, RAW+Standard, Fine, Standard MPO+Fine, MPO+Standard

Цветовой профиль

sRGB, Adobe RGB

Размер изображений

[4:3] 4,608 x 3,456 (L), 3,264 x 2,448 (M), 2,336 x 1,752 (S), 1,824 x 1,368 (When attaching 3D lens in Micro Four Thirds System standard)

[3:2] 4,608 x 3,072 (L), 3,264 x 2,176 (M), 2,336 x 1,560 (S), 1,824 x 1,216 (When attaching 3D lens in Micro Four Thirds System standard)

[16:9] 4,608 x 2,592 (L), 3,264 x 1,840 (M), 1,920 x 1,080 (S), 1,824 x 1,024

Запись видео:

MOV: [4K] 3840x2160 - [Full HD] 1920x1080 - [C4K] 4096x2160

MP4: [4K] 3840x2160 - [Full HD] 1920x1080 - [HD] 1280x720 - [VGA] 640x480 - [C4K] 4096x2160

Время записи (Motion Image)

AVCHD: Приблизительно. 220 min с объективом H-HS12035

AVCHD: Приблизительно. 220 min с объективлм H-FS14140

Wi-Fi

IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode, WPS, Wi-Fi Direct

NFC

ISO/IEC 18092, NFC-F

QR Code соединение

Да

Видоискатель

Тип: OLED Live View Finder (2,359K dots equivalent)

Покрытие кадра: приблизительно. 100%

Увеличение: Approx. 1.34x / 0.67x (35 mm camera equivalent)

Регулировка диоптрий: -4.0 - +4.0 (dpt)

Auto Eye Sensor: Да

Система фокусировки

Тип: Контрастный AF

Типы фокусировки: AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF

AF режимы: Face detection / AF Tracking / 49-area-focusing / 1-area-focusing / Pinpoint (Full area touch is available)

AF подсветка: да

AF блокировка: да (AF/AE LOCK кнопка)

One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE

Система экспозамера

1,728-зонная система замера (TBD)

Метод экспозамера

Multiple / Center Weighted / Spot

Диапазон

EV 0 - 18 (F2.0 lens, ISO100 equivalent)

Exposure Mode

Program AE / Aperture Priority AE / Shutter Priority AE / Manual

ISO Чуствительность

Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step) (Up to ISO6400 in motion picture recording) (ISO Auto in M mode)

Компенсация экспозиции

1/3 EV Step, ±5 EV (±3 EV for motion image)

AE блокировка

AF/AE LOCK button

AE брекетинг

3, 5, 7 frames, in 1/3, 2/3 or 1 EV Step, single / burst

баланс белого

Auto / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting

Регулировки баланса белого

Blue/Amber bias, Magenta/Green bias

Установка цветовой температуры

2500-10000K in 100K

White Balance Bracket

3 exposures in blue/amber axis or in magenta/green axis

Shutter Type

Focal-plane shutter

Shutter Speed

Still image: Bulb (Max. 60 minutes), 1/8,000 - 60

Motion picture: 59.94Hz: 1/16,000 - 1/30, 50.00Hz: 1/16,000 - 1/25, 24.00Hz: 1/16,000 - 1/24 (24.00Hz: 1/16,000 - 1/24 (When using Synchro Scan)

Shutter Life

Approx. 200,000 images

Self Timer

10sec, 3 images / 2sec / 10sec

Remote Control

Remote control with Bulb function by DMW-RSL1 (Optional)

Burst Speed

Mechanical shutter: H: 12.0 frames/sec (with AFS), 7.5 frames/sec (with AFC) (TBD), M: 7.5 frames/sec (with Live View), L: 2.0 frames/sec (with Live View)

Electronic shutter: SH: 40.0 frames/sec, H: 20.0 frames/sec, M: 7.5 frames/sec (with Live View), L: 2.0 frames/sec (with Live View)"

Number of Recordable Images

Approx. 40 images (when there are RAW files with the particular speed)

Approx. 100 images (when there are no RAW files)

Approx. 120 images (when using electronic shutter) (depending on memory card size, battery power, picture size, and compression)"

Flash

Built-in Flash: TTL Built-in-Flash, GN12.0 equivalent (ISO100 · m), GN17.0 (ISO200 · m), Built-in Pop-up (Reference)

Flash Mode: Auto, Auto / Red-eye Reduction (when iA, iA+), Forced ON, Forced ON / Red-eye Reduction, Slow Sync., Slow Sync. / Red-eye Reduction

Sync Speed: Less than 1/160 second

Flash Output Adjust: 1/3 EV Step ±3 EV

Flash Sync: 1st Curtain Sync., 2nd Curtain Sync

Sync for Flash Dimming and Exposure Compensation: Yes (ON / OFF)

Flash Sync Socket: Yes

ЖК-экран

Тип: OLED monitor with static touch control

Размер экрана: Free-angle 7.5 cm / 3:2 соотношение сторон

Кол-во пикселей: 1036K

Охват кадра: Approx. 100%

Возможность настройки яркости, контраста

Live View

Цифровой режим: 2x, 4x

Extra Tele Conversion: Still image: Max. 2x (Aspect ratio sets at 4:3. Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) Motion picture: 2.4x (FHD), 3.6x (HD), 4.8x (VGA)

Other functions: Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture)

Photo Style

Still Image and Motion Image: Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom

Creative Control Still Image

Expressive / Retro / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Miniature Effect / Soft Focus / Star Filter / One Point Color

Creative Control Motion Image

Expressive / Retro / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Miniature Effect / One Point Color

Creative Video Mode Exposure Mode

Program AE / Aperture-Priority / Sutter-Priority / Manual Exposure

Motion Picture Function

Master pedestal level: 31 steps

luminance level: 0-255 / 16-235 / 16-255

Synchro scan: Yes

Time code: Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When system frequency [59.94Hz] is selected.)

SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

Color bars / 1K Hz test tone: Yes (SMPTE / EBU / ARIB) / Yes

Cinelike gamma: Cinelike D / Cinelike V

Playback Mode

Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only / 3D / Category Selection / Favorite, duration & effect is selectable), Playback Mode (Normal / Picture / Video / 3D Play / Category / Favorite), Location Logging, RAW Processing, Clear Retouch, Title Edit, Text Stamp, Video Divide, Time Lapse Video, Stop Motion Video, Resize, Cropping, Rotate, Rotation Display, Favorite, DPOF Print Set

Image Protection / Erase

Protection: Single / Multi, Cancel

Erase: Single / Multi / All / Except Favorite

Print

Direct Print: PictBridge compatible

USB

USB 2.0 High Speed

HDMI Monitor-through

4:2:2 8-bit / 4:2:2 10-bit (When 4:2:2 10-bit mode is selected, it is not possible to record motion picture or still picture on the SD memory card in the camera unit.)

information display ON/OFF (selectable)

Automatic down-conversion (4K } 1080p only)

HDMI Playback

miniHDMI TypeD / VIERA Link, Audio: Stereo

59.94Hz: Auto / 4K / 1080p / 1080i / 720p / 480p

50.00Hz: Auto / 4K / 1080p / 1080i / 720p / 576p

24.00Hz: Auto / C4K / 4K / 1080p

(4:2:2 10-bit or 4:2:2 8-bit is selectable.)

Audio Video Output

Monaural Type

Remote Input

2.5mm for remote

External Microphone Input

3.5mm for external microphone

Headphone Output

3.5mm for headphone

Microphone

Stereo, Wind-cut: OFF / Low / Standard / High / Auto

Speaker

Monaural

OSD Language

English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Russian, Chinese (Traditional), Chinese (Simplified), Dutch, Thai, Korean, Turkish, Portuguese, Arabic, Persian, Japanese, Swedish, Danish, Finnish, Greek, Vietnamese

Battery

Li-ion Battery Pack (7.2V, 1,860mAh) (Included)

Battery Charger

Battery Life

Approx. 500 images with H-HS12035

Approx. 500 images with H-FS14140"

Operating Temperature

32 to 104°F (0 to 40°C)

Software

PHOTOfunSTUDIO 9.5 PE (Windows XP / Vista / 7 / 8)

SILKYPIX® Developer Studio 4.1 SE (Windows XP / Vista / 7 / 8, Mac

OS X v10.5 / v10.6 / v10.7 / v10.8)

LoiLoScope (trial version) (Windows XP / Vista / 7 / 8)"

Dimensions

5.23 x 3.68 x 3.23" (132.9 x 93.4 x 82.0mm) excluding protrusions

Weight

Approx. 560g / 19.75 oz (SD card, Battery, Body)

Approx. 480g / 16.93 oz (Body only)

Approx. 865g / 30.51 oz (SD card, Battery, H-HS12035 lens included)

Approx. 825g / 29.10 oz (SD card, Battery, H-FS14140 lens included)

Optional Accessories

External flash: DMW-FL580L (optional), Wireless Channel: 1ch/2ch/3ch/4ch

Interface unit: DMW-YAGH

AC adaptor: DMW-AC10

External microphone: DMW-MS2 Stereo/Lens Auto/Shotgun/Super Shotgun/Manual

Battery grip: DMW-BGGH3

Объектив Panasonic 12-35mm F2.8 ASPH X Vario

Формат объектива

Четыре третьих

фокусное расстояние

12-35mm

35mm эквивалент фокусных расстояний

24-70mm

Угол обзора

84° - 34°

Максимальная диафрагма

F2.8

Минимальная диафрагма

F22

Оптическая схема

14 элементов в 9 группах

4 асферических элементов

1 UED элемент (низкодисперсионное стекло)

1 UHR элемент (стекло с высокой рефракцией)

Диафрагма

7-ми лепестковая

мин. расстояние для фокусировки

0.25m

Максимальное увеличение

Прибл. 0.17x (0.34x 35mm-эквивалентt)

система автофокуса  AF

Линейный шаговый мотор

стабилизатор изображения

Power OIS

Резьба для фильтра

58mm

не влияет на фокусировку

Аксессуары в комплекте*

Передняя и задняя крышка объектива

H-HS12035 Бленда

Чехол для объектива

Масса

305g

Размеры

67.6mm диаметр x 73.8mm длина

Байонет

Micro 4/3
